OHS 12c Webgate Deployment and configuration with OAM 12c ( 12.2.1.3.0)

OHS 12c Webgate Deployment and configuration with OAM 12c ( 12.2.1.3.0)

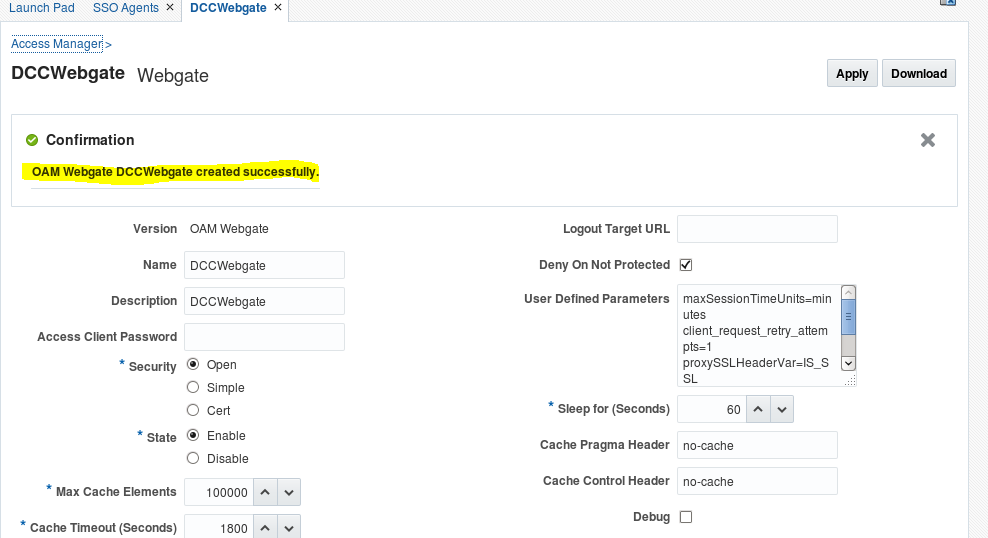

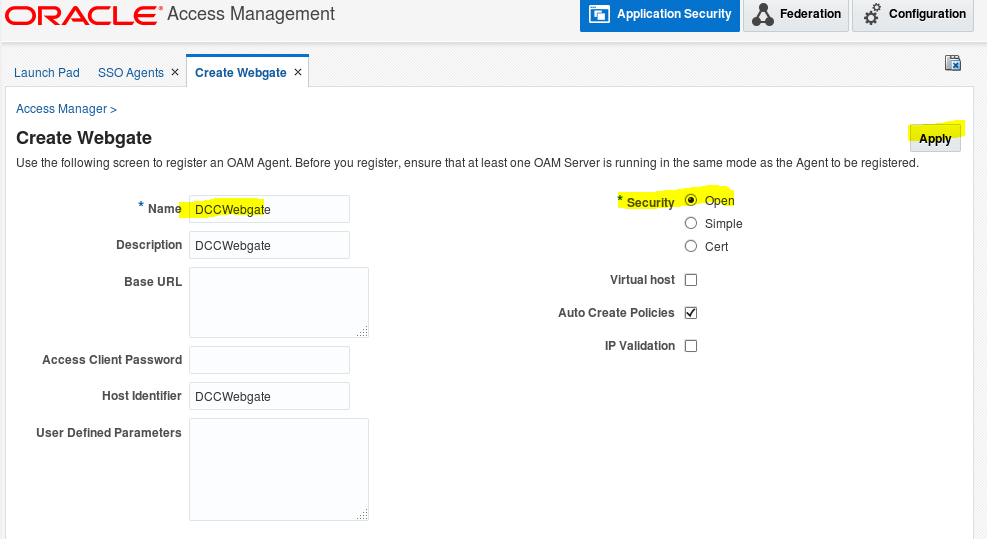

1. Login to oamconsole -> Application Security -> SSO Agents -> create Webgate

2. Make sure the HTTP 12c Server is configured and installed

Just for the reference if not already installed:

https://orclidentitymanagement.blogspot.com.au/2017/10/ohs-12c-122130-ps3-installation-and.html

3. Deployment of Webgate

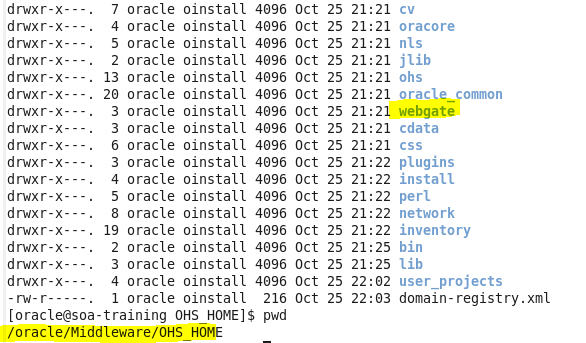

Since OHS 12c, the OAM Webgate gets shipped along with the OHS installers so no need to install a separate Webgate binary.

Run the following command in-order to deploy the webgate:

Cd /oracle/Middleware/OHS_HOME/webgate/ohs/tools/deployWebGate

./deployWebGateInstance.sh -w /oracle/Middleware/OHS_HOME/user_projects/domains/ohs_domain/config/fmwconfig/components/OHS/instances/OHS_Instance1 -oh /oracle/Middleware/OHS_HOME/

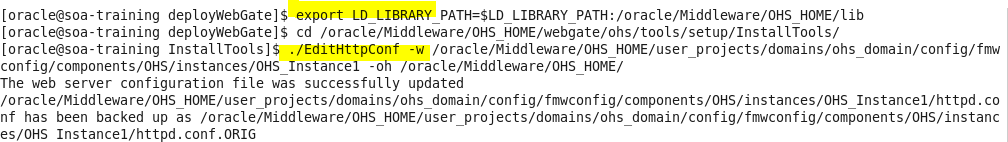

4. Configure Webgate :

Run the following command:

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/oracle/Middleware/OHS_HOME/lib

cd /oracle/Middleware/OHS_HOME/webgate/ohs/tools/setup/InstallTools/

./EditHttpConf -w /oracle/Middleware/OHS_HOME/user_projects/domains/ohs_domain/config/fmwconfig/components/OHS/instances/OHS_Instance1 -oh /oracle/Middleware/OHS_HOME/

5. Copying the OAM Artefacts to the Webgate :

Copy cwallet.sso and ObAccessClient.xml file from “/oracle/Middleware/Oracle_Home/user_projects/domains/oam_domain1/output/DCCWebgate” to “/oracle/Middleware/OHS_HOME/user_projects/domains/ohs_domain/config/fmwconfig/components/OHS/instances/OHS_Instance1/webgate/config/” location

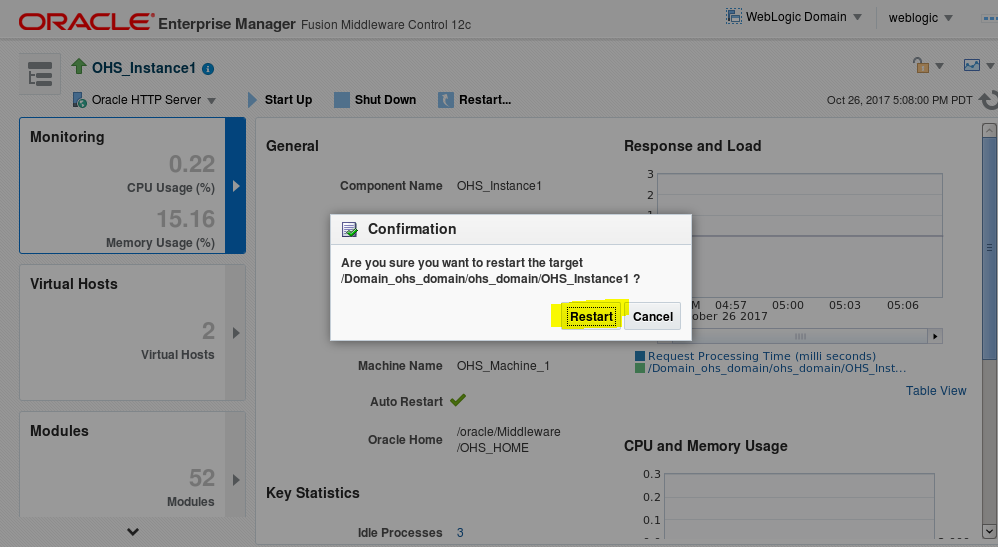

6. Restart OHS server instance:

7. Try to access OHS index.html, the default OAM login page should get displayed

http://<<ohs_hostname>>:7777/index.html

Enter your weblogic credentials for the OAM SSO

Result:

The basic SSO has been configured in between the OHS12c and OAM 12c ☺
